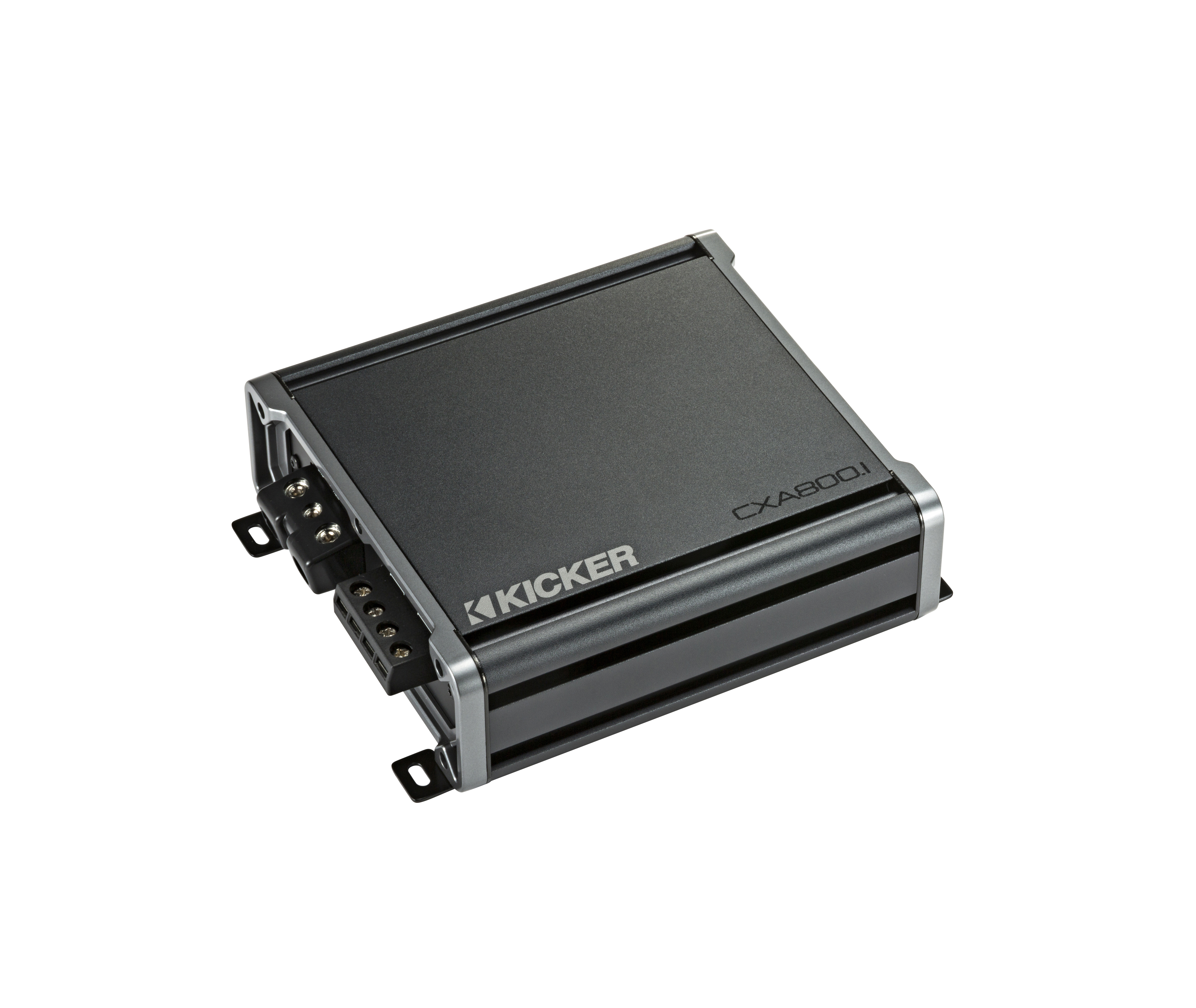

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.

This CX.1 amplifier delivers as much as 800 watts into one bass channel.

MANUFACTURER:

• MODEL
• CXA800.1
• Power (watts/ch) 4 Ohm
• 300×1
• Power (watts/ch) 2 Ohm
• 600×1
• Power (watts/ch) 1 Ohm
• 800×1
• CXRC Remote Bass Capable (sold sep.)
• yes
• Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x …L)
• 8-1/8, 20.6
• Frequency Response (Hz):
• 25-200, +0/-1dB
• Input Sensitivity:
• 250mV-10V (Low Level)
• 1V-40V (High Level)
• Signal-to-Noise Ratio:
• >95dB, a-weighted, re: rated power
• Active Crossover:
• Variable Lo-pass 50Hz–200Hz, 12dB/octave
• Subsonic Filter:
• 25Hz @24dB/octave
• KickEQ™ Boost
• Variable 0-6dB @40Hz
