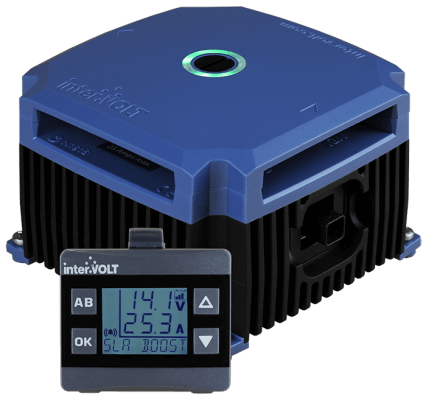

Intervolt DCC1225 In-Vehicle DC-DC Battery Charger
SKU: DCC1225
Our Price (inc gst):$ 578.00
Own it now, Pay later
Description
The DCC Pro In-Vehicle DC-DC Battery Charger was developed for the purpose of charging and maintaining any auxiliary battery in an installation where the starting battery is used as the supply source. It has been designed for use in 4WDs, RVs, buses, coaches, caravans, campers or any vehicle with a 12VDC electrical system.
The DCC Pro is built for our tough Australian conditions. Unlike many imported products, particularly those produced for the European market, it is designed to maintain output in the harshest of environments under the highest ambient temperatures.
The DCC Pro is a standalone power conversion device. It will manage a variety of different battery types according to their specific charging requirements. As no modification to the vehicle’s original wiring is required this ensures the manufacturer’s electrical system is not compromised in any way.
The DCC Pro is a highly innovative product with many unique features. It has the flexibility to adapt to almost any vehicle, old or new, simple or complex with or without an ECU controlled electrical system and even allows the operator monitor the charging status from the comfort of the cabin!
Specifications
Input Voltage –
- • Main: 9 – 17 VDC,
- • Solar Input: 27 VOC max. (open circuit – no load)
Solar Power – 250 Watts nominal (300 Watts peak)
Continuous Rating – 25 Amps @ 50°C
Current Draw –
- • Charging Device: Including LED indicator <10mA
- • Remote Display: With backlight off: 10mA max,
- • With backlight on: 30mA max
Boost Voltage –
- • Standard Lead Acid: 14.4 VDC Nominal
- • Absorbed Glass Mat: 14.6 VDC Nominal
- • Gelified Electrolyte: 14.2 VDC Nominal
- • Lead Calcium: 14.8 VDC Nominal
Float Voltage – 13.2 VDC Nominal
Electrical Protection –
- • Thermal overload shutdown – auto reset
- • Electrical overload shutdown – auto reset
- • Under voltage disconnect – auto re-connect
- • Over voltage disconnect – auto re-connect
- • Reverse polarity protection of main terminals
Environmental Protection –
- • Charging Device: IP67 (internal components only)
- • Remote Display: IP40 (not dust or water resistant)
Operating Temperature – -20°C to +85°C
Operating Humidity – Up to 98%
Charging Device Materials –
- • Heatsink: E-Coated ADC-3 die cast aluminium
- • Blue Plastics: Temperature resistant PC/ABS alloy
- • Black Plastics: 15% glass reinforced PBT
- • Transparent Plastics: Temperature resistant PMMA
Remote Display Materials –
- • Dark Grey Plastics: Temperature resistant PC/ABS alloy
- • Transparent Plastics: Temperature resistant PMMA
Terminal Material – Tin plated brass
Terminal Fasteners – 304 stainless steel
Conformity – AS/NZS CISPR 11:2004 for EMC
Dimensions –
- • Charging Device: 112 x 112 x 75mm (including terminal cover)
- • Remote Display: 60 x 36 x 59mm (including mounting bracket)
Weight –
- • Charging Device: 690 grams
- • Remote Display: 55 grams
