Lightforce CBLEDBD20C 20" DUAL ROW LED BAR - COMBO
SKU: CBLEDBD20C
Own it now, Pay later
Lightforce legendary performance is now available in next-generation LED Bars, extruded from 6063 aluminium and finished in a UV-resistant anodised coating to face the world's harshest conditions.
PRODUCT DETAILS
Lightforce performance is now available in next-generation LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.
The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.
FEATURES
- Extruded aluminium body with black anodised coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Submersible to 3 metres
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
PRODUCT SPECIFICATION
| Distance: 1 lux at | 458m |
|---|---|
| Distance: 0.25 lux at | 916m |
| Effective Lumens | 5970 |
| Raw Lumens | 11,200 |
| Colour Temperature | 5000K |
| Current Draw | 7.4Amps @ 13.2V |
| Voltage Range | 10V - 36V DC |
| Wattage | 200W |
| Ingress Protection Rating | IP69K |
| Weight | 3.18kg |
1 LUX AT 458 METRES
PERFORMANCE
The Lightforce 20 Inch Single Row LED Light Bar offers a high volume of light with excellent visibility on road shoulders. It is perfectly suited for the night driver needing a huge amount of brightness and coverage in the mid-range and provides safety when it comes to easily spotting wildlife on the side of the road.

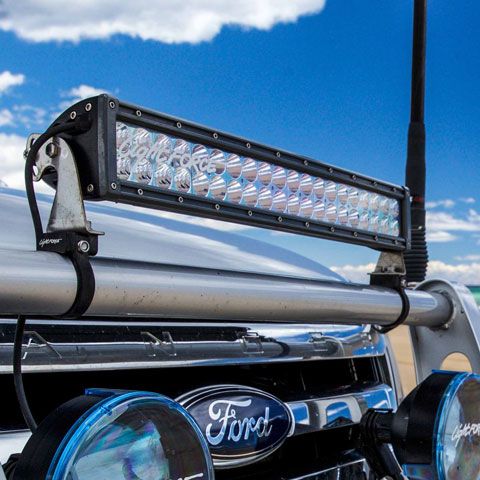

MOUNTING OPTIONS
Our 20 Inch Dual Row LED Bars come complete with a waterproof Deutsch connector, including full wiring harness with multiple mounting options available. Please consult the diagram to see how the dimensions of these bars and their mounts can fit your vehicle.
