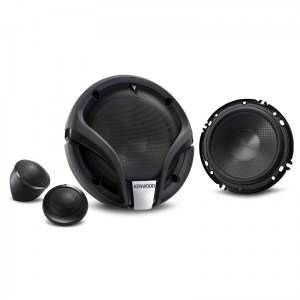

Kenwood's KFC-M604P features injection P.P Cones with square-array pattern diaphragm woofers that deliver strong drum-like bass, along with clean reproduction of mid-range frequencies. Combined with the separate soft dome tweeters which add strong high frequency response without even a hint of harshness, all styles of music plays faithfully.

Features:

• Square Array pattern diaphragm
• Angle & Flush Mount Bracket
• Tweeter: 25mm Soft Dome Tweeter
• Woofer: 160mm Injection P.P. cone with Square-Array Pattern Diaphragm
• Rated Input Power: 60W (CEA Spec.)
• Peak Input P{ower: 270W

Specifications:

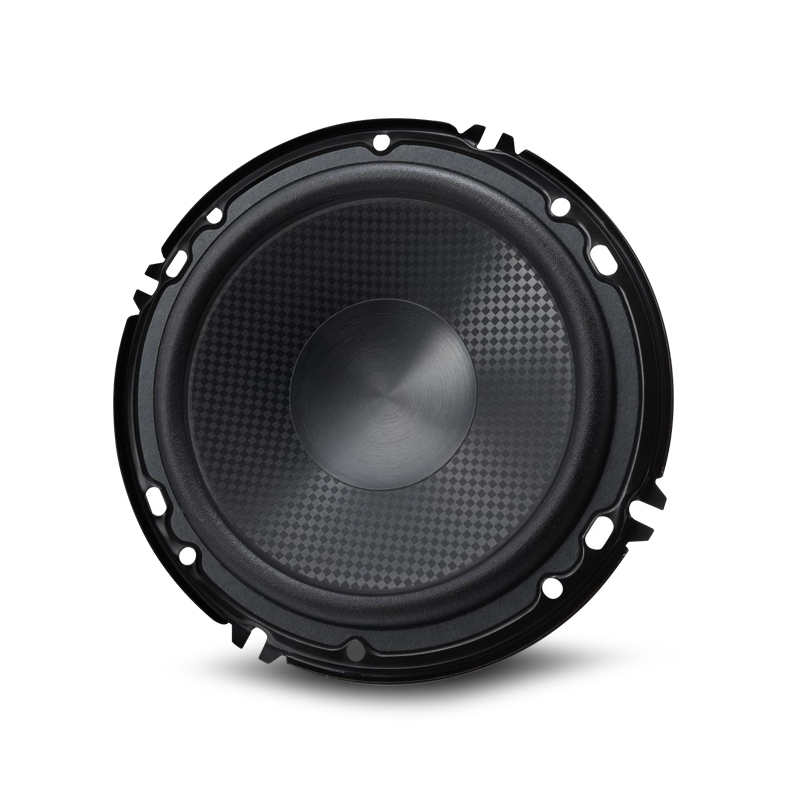

Woofer

• Size: 160mm; 6-1/2in
• Diaphragm: Injection P.P. cone
• Surround: Cloth
• Basket Steel:Black
• Magnet: Ferrite; φ70*t12

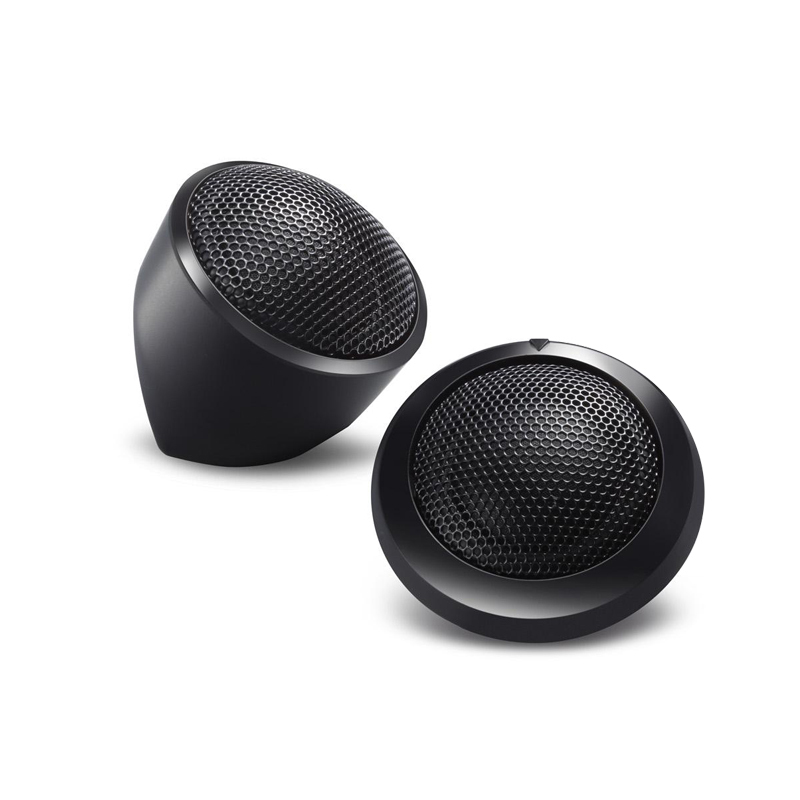

Tweeter

• Size: 25mm; 1in.
• Diaphragm: Soft Dome
• Magnet: Neodium; Φ23.5xt3.4

Dimension:

Woofer (Unit):

• Width (w_Gr): 168.4mm
• Width (w/o_Gr): 157.7mm; 6-3/16in
• Height (w_Gr): 170.0mm; 6 - 11/16in
• Height (w/o_Gr): 157.7mm; 6-3/16in
• Cutout Diameter: 123.0mm; 4-13/16in
• Depth (w/o_Gr): 55.5mm
• Mounting Depth: 45.5mm; 1-13/16in

Tweeter

• Width: 37.9mm
• Height: 37.9mm
• Depth: 20.1mm

Weight:

• Woofer with Grille: (pc.) 843g; 1.9lbs
• Woofer without: Grille (pc.) 758g; 1.7lbs
• Gross Weight: 2,000g; 4.4lbs
• Weight of Magnet (Woofer): 220g; 7.8oz

Nominal Impedance: 4 Ohms

Sensitivity: 86db / W at 1m

Power Handling:

• Peak Power (KITS SPEC): 270W
• RMS Power (CEA SPEC): 60W

Frequency Response: 90Hz; 21,000Hz

Accessories:

• Grille*2
• In-Line N/W*2
• Speed Nutφ4*12
• φ4*25*8
• φ4*16*4
• Wing Nut M5*2
• Braket Tw(Angle)*2
• Braket Tw(Flush)*2
• Mounting Hardware*2
• Angle Bracket Cusion*2
• CUSHION FOR ANGLE BRACKET*2

Special Features

• Square Array pattern diaphragm
• Angle & Flush Mount Bracket
