Kenwood KFC-M614P - 6" 300W 3 Way Component M Series Speakers with External Crossover

SKU: KFC-M614P

Our Price (inc gst):$ 199.00
Want to order this product? Send us an enquiry here and we'll get straight back to you with details.
Seen It Cheaper? Chat With Us Now

Own it now, Pay later

zip logo
heart icon

Want it

Choose the items
you love and select
Zip at checkout
cart icon

Get it

We pay the store,
you get the goods,
nothing to pay today
thumbsup icon

Own it

Choose how you pay
us back over time,
interest free
zip money logo
zip pay logo

*A $6 monthly account fee applies. Pay your balance by the due date
(the end of next month) and we'll waive the fee. See full Ts & Cs

7774
78
Description
Kenwood's M-Series are a premium range of speakers with the very latest design and build features including high quality injection P.P. cones with Square-Array Pattern Diaphragms as well as Kenwood's 'Angled Direct Sound' (ADS) feature on the coaxial units which directs mid-high range frequencies towards passengers' ears delivering clearer, more directional sound with less loss.

With 300W peak power handling (65W RMS) this system is a great choice for your amplified setup, featuring 160mm Injection P.P. woofer cones with Square-Array Pattern Diaphragm, 4" midrange, 25mm soft-dome tweeters and external crossovers for additional adjustablility for optimum sound performance.

Specifications:

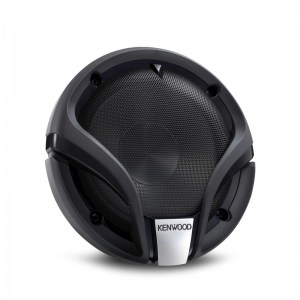

Woofer

  • Size: 160mm; 6-1/2in
  • Diaphragm: Injection P.P. cone
  • Surround: Rubber
  • Basket: Steel:Black
  • Magnet: Ferrite; φ70*t12

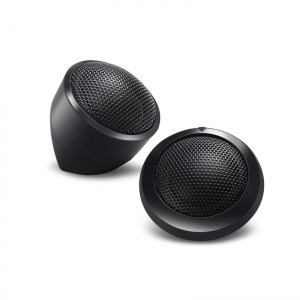

Tweeter

  • Tweeter Size: 25mm; 1in.
  • Diaphragm: Soft Dome
  • Magnet: Neodium; Φ23.5xt3.4

Dimensions

Woofer (Unit)

  • Width (w_Gr): 168.4mm
  • Width (w/o_Gr): 157.7mm; 6-3/16in
  • Height (w_Gr): 170.0mm; 6 - 11/16in
  • Height (w/o_Gr): 157.7mm; 6-3/16in
  • Cutout Diameter: 123.0mm; 4-13/16in
  • Tweeter Height: -
  • Depth (w_Gr): -
  • Depth (w/o_Gr): 55.5mm
  • Mounting Depth; 45.5mm; 1-13/16in

Tweeter

  • Width: 37.9mm
  • Height: 37.9mm
  • Depth; 20.1mm

Weight

  • Woofer with Grille (pc.): 843g; 1.9lbs
  • Woofer without Grille (pc.): 758g; 1.7lbs
  • Gross Weight: 2,000g; 4.4lbs
  • Weight of Magnet (Woofer): 220g; 7.8oz

Nominal Impedance: 4 Ohms

Power Handling

  • Peak Power (KITS SPEC): 300W
  • RMS Power (CEA SPEC): 65W

Sensitivity: 85db / W at 1m
Frequency Response: 75Hz; 21,000Hz

Accessory

  • Grille*2
  • Box N/W*2
  • Speed Nutφ4 *12
  • φ4*25 *8
  • φ4*16*4
  • Wing Nut M5*2
  • Bracket Tw (Angle)*2
  • Bracket Tw (Flush)*2
  • Mounting Hardware*2
  • Angle Bracket Cushion*2
  • Vinyl Tie*2
  • NW-Box Cushion*2
  • Cushion for Angle Bracket*2

Special Features

  • Square Array pattern diaphragm
  • Angle & Flush Mount Bracket
