Pioneer TS-WX400DA Compact Active Subwoofer
Own it now, Pay later
• 250w Max (100w Nom)
• Built-In Class-D Amplifier
• Digital Bass Control (Selectable Bass Mode: Deep or Dynamic)

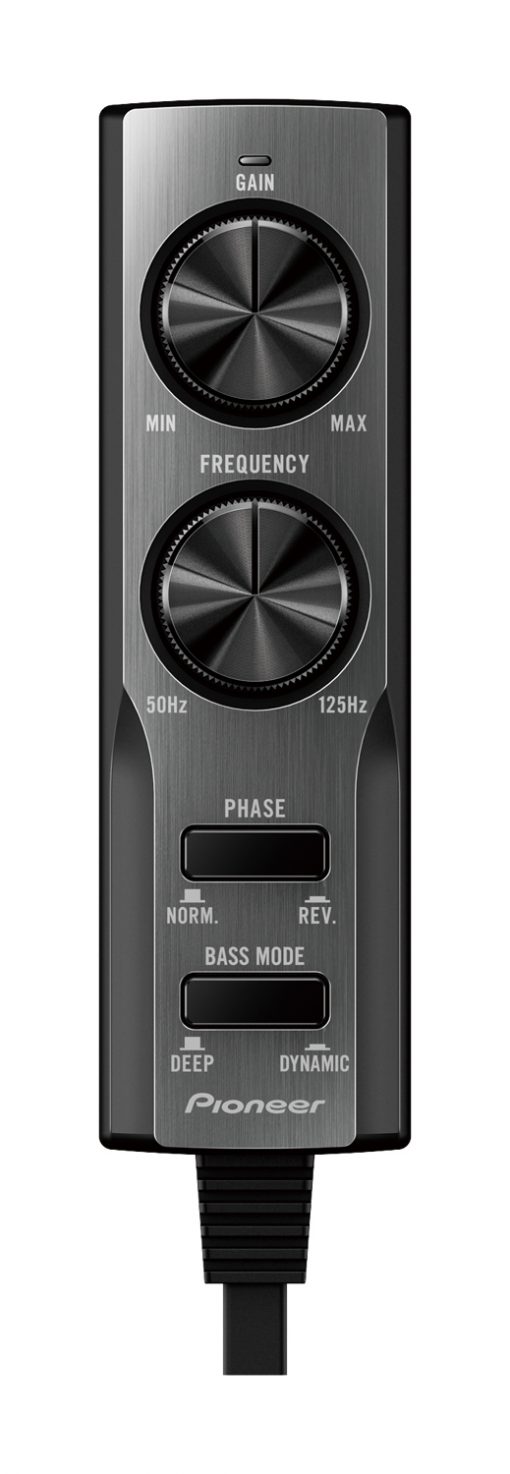

• Wired Remote Control (Gain, LPF, Phase, Bass Mode)

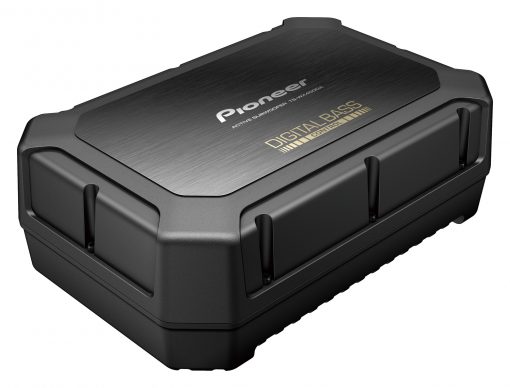

The TS-WX400DA active subwoofer measures 300mm (W) x 200mm (D) and 100mm (H). The TS-WX400DA is designed to be compact yet still provide an impressive “punch”. Utilizing a “down fire” speaker design the TS-WX400DA is able to produce richer low frequency reproduction that does not seem achievable from such a small enclosure.
Including a DSP with two selectable equalizer curves (Deep / Dynamic), Phase control, Frequency and Gain control you can adjust the TS-WX400DA to suit you musical style.
With a Class-D amplifier on board the TS-WX400DA achieves low power consumption allowing for flexible installation options.
POWERED AMPLIFIED SUBWOOFER

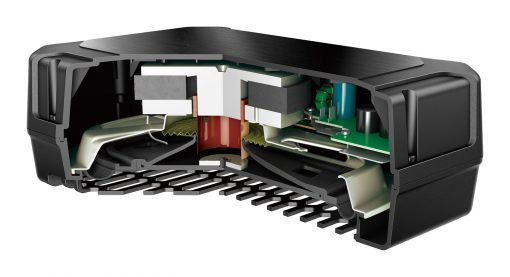

Combines a built-in 250-watt Class D amplifier realizing low power consumption (9.4A Max) with a new “down fire” enclosure design to achieve a rich low frequency response.
DIGITAL BASS CONTROL
Digital Bass Control provides two selectable listening modes, Deep and Dynamic, enhancing system optimization and tuning the output to complement various musical styles and vehicle types.
INSTALL FLEXIBILITY
Extremely compact, measuring 300mm (W) x 200mm (D) and 100mm (H), the TS-WX400DA is designed to be installed in various small, tight spaces. With the ability to fit under seats, behind seats or inside small storage compartments, the features a wide range of vehicle applications.
| GENERAL | |
| Driver Size | 24cm x 14cm |
|---|---|
| Enclosure Dimensions | 300mm (W) x 200mm (D) x 100mm (H) |
| Max. Music Power (Nominal) | 250W MAX (100W Nom) |
| Warranty | 1 Year |
| Woofer Composition | Injection Molding Poly-Propylene (IMPP) |
| Woofer Surround | Urethane |
| AUDIO | |
| Frequency Response | DEEP: 20-100 Hz, DYNAMIC: 20-100 Hz |
| Sensitivity (1W/1 m) | DEEP:100 dB, DYNAMIC:100 dB |
