REDARC TVMSKIT05 REDVISION MANAGER30 KIT

SKU: TVMSKIT05

Our Price (inc gst):$ 3845.00
Want to order this product? Send us an enquiry here and we'll get straight back to you with details.
Seen It Cheaper? Chat With Us Now

Own it now, Pay later

zip logo
heart icon

Want it

Choose the items
you love and select
Zip at checkout
cart icon

Get it

We pay the store,
you get the goods,
nothing to pay today
thumbsup icon

Own it

Choose how you pay
us back over time,
interest free
zip money logo
zip pay logo

*A $6 monthly account fee applies. Pay your balance by the due date
(the end of next month) and we'll waive the fee. See full Ts & Cs

Description

REDARC’s TVMSKIT05 features the award winning Redvision TVMS and iconic Manager30 S3 BMS.

he TVMSKIT05 combines the innovative, award-winning RedVision Total Vehicle Management System and the iconic 30amp Manager30 Battery Management System to provide full control and monitoring of your 4x4, camper, caravan or motorhome.

An unprecedented level of automation

RedVison allows you to control multiple on-board devices, such as turning lights, inverter, water pumps and other loads such as televisions, electric steps and fridges on or off. It also provides you with the ability to monitor up to 6 separate water levels, temperatures, and when paired with the Manager30 allows you to monitor your battery power consumption and storage through the provided In-vehicle mounted display or by downloading the app on your own android or IOS device.

The complete battery management solution

This kit includes The Manager 30 main unit, REDARC’s award-winning 30amp battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The DC to DC charger incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery and is suitable for all major battery types including Lead Acid, Lithium, Gel, Calcium, or AGM batteries.

The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240-volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor for up to date battery information and charge status.

Features

  • Combines power protection, distribution, and control in one unit
  • Distribution Box accepts inputs from a range of battery management components via the Manager30 allowing close monitoring of all battery usage and charging information
  • Accepts inputs for monitoring up to 6 water levels and temperatures
  • Capable of switching devices on/off like lights, TV, electric steps etc
  • Bluetooth connectivity to BYOD iOS and Android to the exclusive RedVision User App
  • Fully configurable home screen via RedVision Configurator App

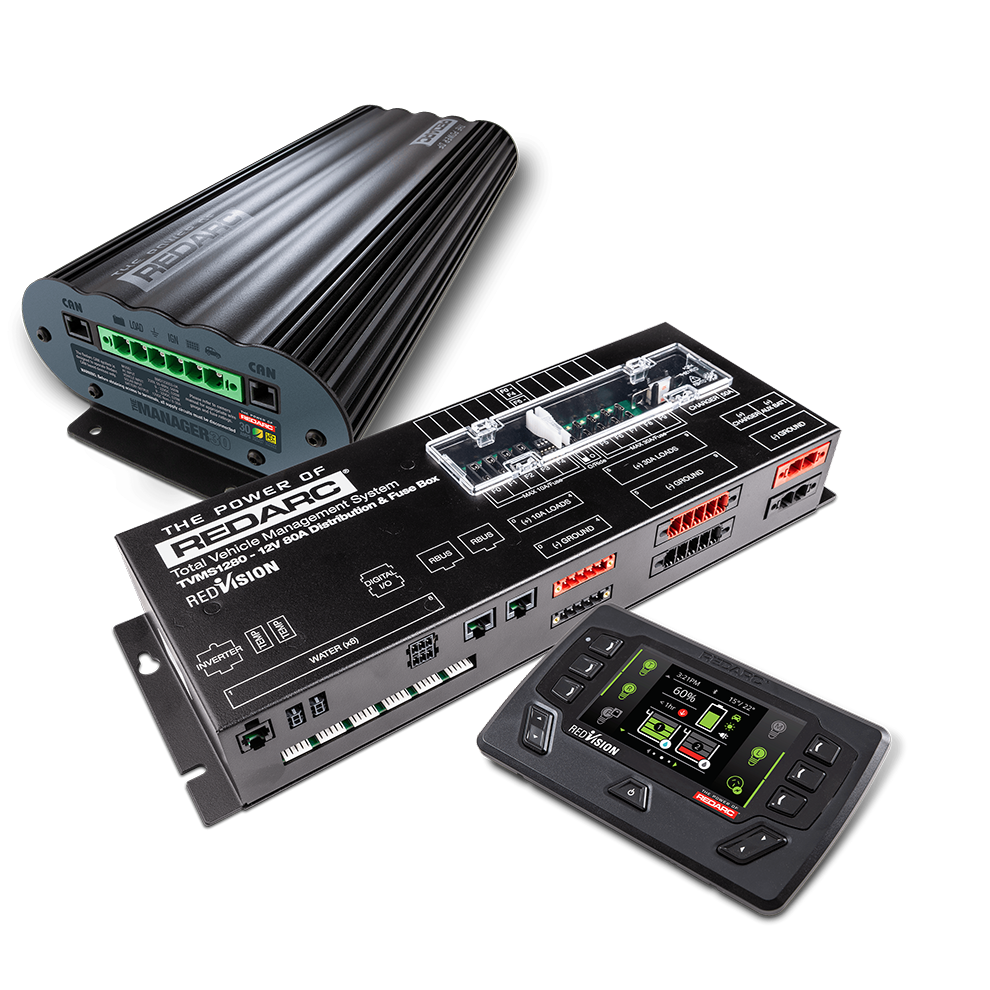

This kit includes;

  • RedVision Distribution Box
  • RedVision In-vehicle Mounted Display Screen
  • Manager30 Battery Management System main unit

RedVision

Operating Temperature (Distribution box) -20°C to + 60°
Operating Temperature (Display) -20°C to + 70°C
Storage Temperature (Display) -20°C to + 85°C
Maximum Charger Current 40A
Maximum Battery Current 80A
Temperature Sensors 2
Output Circuits (Max) 5 x 10A
Output Circuits (Max) 5 x 30A
Main Unit Dimensions 385 x 138 x 58mm
Display Dimensions 178 x 108 x 26mm
Warranty 2 Years
Compliance AU & NZ Only

Manager30

Output System Voltage 12VDC
Maximum Charging Voltage 16.0V* (*Calcium setting in storage mode)
Output Current Rating (Cont.) 30A
Output Power 520W
Input Fuse Rating 40A
Output Fuse Rating 40A
Warranty 2 Years
Protection Short Circuit, Surge, Reverse Polarity, Overload
Input (Operating) Voltage 240VAC / 9 - 32VDC
Length (mm) 445
Width (mm) 185
Height (mm) 79
Weight (kg) 5.5
AC Mains Plug Type AU, NZ, EU
Type Approval CE
